About

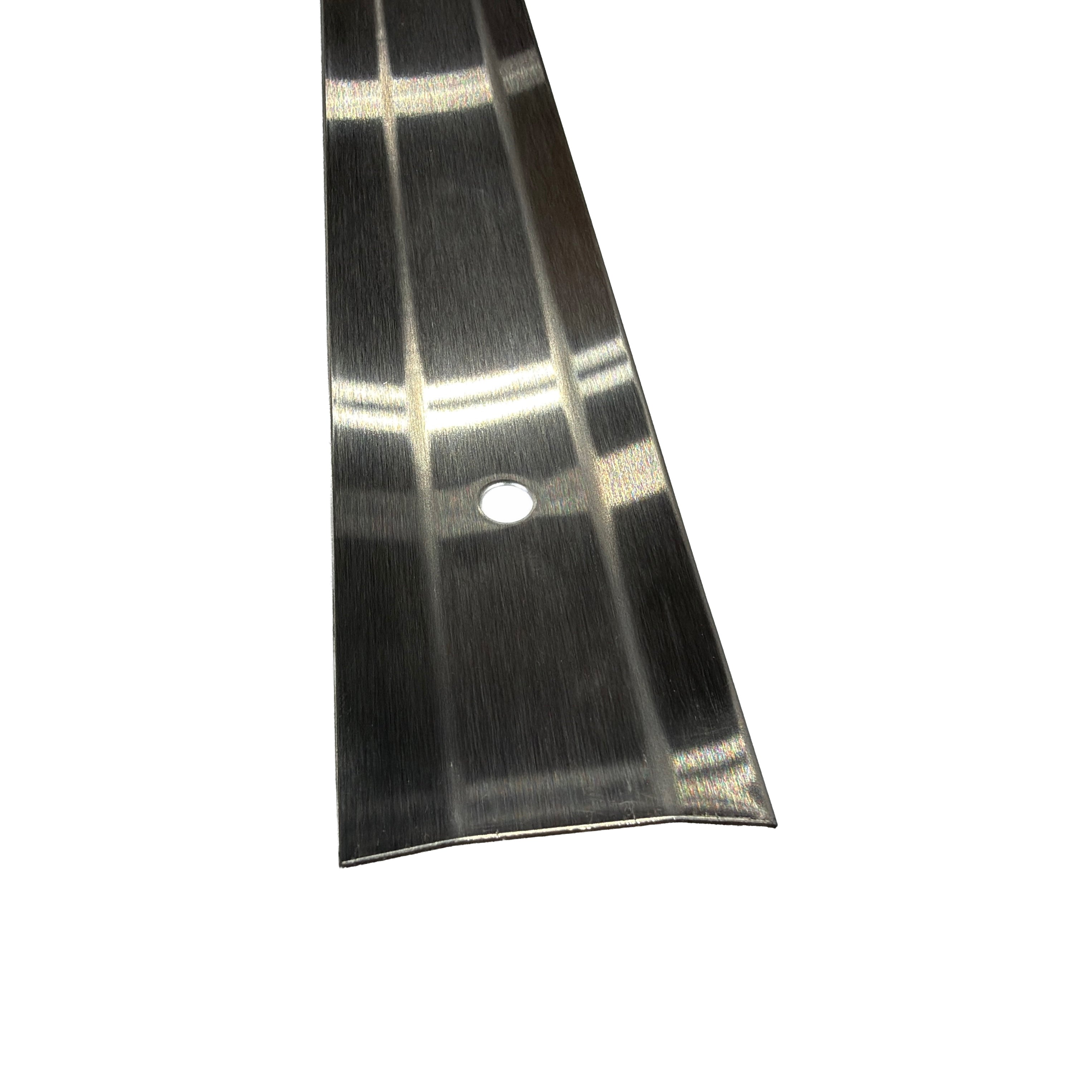

Finish and secure adjoining panel edges with the EPIC QT Stainless Steel Panel Retainer Trim. Its flat seam profile overlaps adjacent panel edges and covers butt joints for a clean, professional appearance.
Made from 18-gauge Type 304 stainless steel with a #4 brushed finish, this trim measures 2 inches wide by 48 inches long. Formed jogs along both long edges, positioned 3/8 inch inward from each edge, create an offset profile for panel overlap. The stainless steel construction provides rigidity and corrosion resistance while complementing stainless steel panels and appliances.
Choose with pre-punched holes or without holes to suit your installation. The pre-punched version features four 1/4-inch-diameter mounting holes and includes plastic anchors and #10 × 1-1/2-inch stainless steel screws. Mounting hardware is included only with the pre-punched version.
Suitable for wall panels, backsplashes, equipment enclosures, and architectural cladding in commercial and residential settings.
Product Features
- Flat butt-joint profile: Covers the seam between adjoining panels for a finished appearance.
- Panel retention: Formed edges overlap adjacent panels to help hold them in position when properly fastened.
- Type 304 stainless steel: Durable, corrosion-resistant construction.
- #4 brushed finish: Coordinates with stainless steel wall panels, appliances, and equipment.
- Two mounting options: Available with four pre-punched mounting holes or without holes.
- Hardware with pre-punched option: Includes plastic anchors and #10 × 1-1/2-inch stainless steel screws.
Specifications
| Specification | Details |
|---|---|
| Brand | EPIC QT |
| Product type | Panel retainer trim / butt-joint seam cover |
| Profile | Flat seam |
| Material | Type 304 stainless steel |
| Finish | #4 brushed |
| Gauge | 18 gauge |
| Nominal material thickness | Approximately 0.050 inch / 1.3 mm |
| Overall width | 2 inches |
| Overall length | 48 inches |
| Edge configuration | Formed jogs along both long edges |
| Jog setback / Hug edge | 3/8 inch inward from each long edge |
| Available options | With holes / Without holes |
| Hole diameter—pre-punched version | 1/4 inch |
| Hole quantity—pre-punched version | 4 per trim |
| Included hardware—pre-punched version only | Plastic anchors and #10 × 1-1/2-inch stainless steel screws |
| Primary function | Overlaps and retains adjoining panel edges while covering the seam |
| Typical applications | Wall panels, backsplashes, equipment enclosures, and architectural cladding |
Installation
Position the trim over the joint between adjoining panels. Confirm panel thickness and fit beneath the formed edges before securing. For the pre-punched version, use the mounting holes to mark the fastening locations. The version without holes allows you to drill mounting holes where needed for your installation.
Use fasteners and anchors appropriate for the supporting surface. The hardware included with the pre-punched version may not suit every substrate; some installations may require different anchors or fasteners.
Care and Maintenance
Clean with mild soap and water using a soft cloth. Wipe in the direction of the brushed grain to preserve the finish. Avoid abrasive cleaners, steel wool, and chlorine bleach.
Finish and secure adjoining panel edges with the EPIC QT Stainless Steel Panel Retainer Trim. Its flat seam profile overlaps adjacent panel edges and covers butt joints for a clean, professional appearance.
Made from 18-gauge Type 304 stainless steel with a #4 brushed finish, this trim measures 2 inches wide by 48 inches long. Formed jogs along both long edges, positioned 3/8 inch inward from each edge, create an offset profile for panel overlap. The stainless steel construction provides rigidity and corrosion resistance while complementing stainless steel panels and appliances.
Choose with pre-punched holes or without holes to suit your installation. The pre-punched version features four 1/4-inch-diameter mounting holes and includes plastic anchors and #10 × 1-1/2-inch stainless steel screws. Mounting hardware is included only with the pre-punched version.
Suitable for wall panels, backsplashes, equipment enclosures, and architectural cladding in commercial and residential settings.
Product Features
- Flat butt-joint profile: Covers the seam between adjoining panels for a finished appearance.
- Panel retention: Formed edges overlap adjacent panels to help hold them in position when properly fastened.
- Type 304 stainless steel: Durable, corrosion-resistant construction.
- #4 brushed finish: Coordinates with stainless steel wall panels, appliances, and equipment.
- Two mounting options: Available with four pre-punched mounting holes or without holes.
- Hardware with pre-punched option: Includes plastic anchors and #10 × 1-1/2-inch stainless steel screws.
Specifications
| Specification | Details |
|---|---|
| Brand | EPIC QT |
| Product type | Panel retainer trim / butt-joint seam cover |
| Profile | Flat seam |
| Material | Type 304 stainless steel |
| Finish | #4 brushed |
| Gauge | 18 gauge |
| Nominal material thickness | Approximately 0.050 inch / 1.3 mm |
| Overall width | 2 inches |
| Overall length | 48 inches |
| Edge configuration | Formed jogs along both long edges |
| Jog setback / Hug edge | 3/8 inch inward from each long edge |
| Available options | With holes / Without holes |
| Hole diameter—pre-punched version | 1/4 inch |
| Hole quantity—pre-punched version | 4 per trim |
| Included hardware—pre-punched version only | Plastic anchors and #10 × 1-1/2-inch stainless steel screws |
| Primary function | Overlaps and retains adjoining panel edges while covering the seam |
| Typical applications | Wall panels, backsplashes, equipment enclosures, and architectural cladding |
Installation
Position the trim over the joint between adjoining panels. Confirm panel thickness and fit beneath the formed edges before securing. For the pre-punched version, use the mounting holes to mark the fastening locations. The version without holes allows you to drill mounting holes where needed for your installation.
Use fasteners and anchors appropriate for the supporting surface. The hardware included with the pre-punched version may not suit every substrate; some installations may require different anchors or fasteners.
Care and Maintenance
Clean with mild soap and water using a soft cloth. Wipe in the direction of the brushed grain to preserve the finish. Avoid abrasive cleaners, steel wool, and chlorine bleach.
