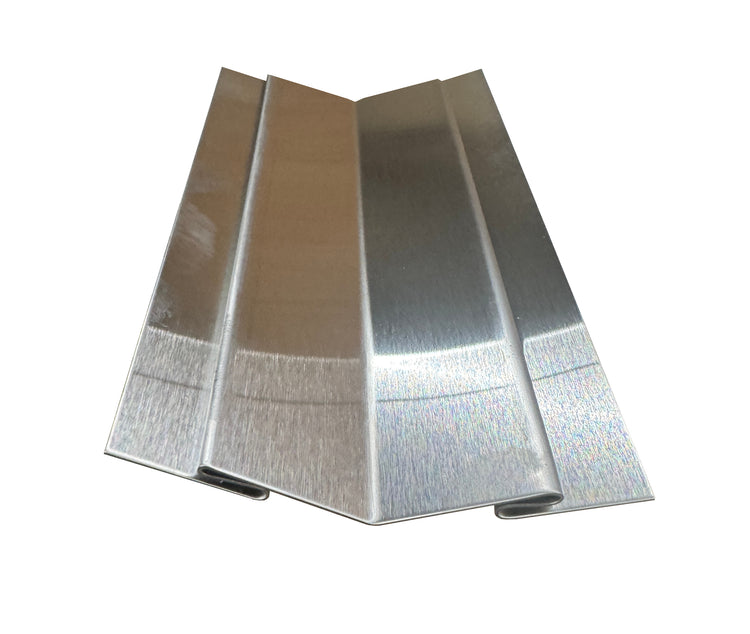

The Epic QT 135° Inside Corner Trim is a precision-formed solution for joining two sheet metal panels at an internal 135° angled junction, commonly found in commercial backsplash returns, angled alcoves, or custom cladding transitions. Crafted from 20-gauge 304 stainless steel with a clean #4 brushed finish, this profile provides a robust and seamless visual line while securing panel edges cleanly and durably.
This trim features dual 0.040" channels designed for 20ga sheet panels (0.036"), reinforced by a central formed inside corner. Extended flanges on each side allow for secure adhesive or fastener-based installation.
Technical Specifications
| Attribute | Details |
|---|---|
| Product Name | Stainless Steel 135° Inside Corner Panel Trim – 20ga |
| Manufacturer | Epic QT (www.epicqt.com) |
| Model ID | PT135IC20-304SS48 |
| Material | 304 Stainless Steel |
| Finish | #4 Brushed (Directional Satin) |
| Panel Compatibility | 20 Gauge (0.036" / 0.91 mm) |
| Slot Opening Width (Each Side) | 0.040" (1.02 mm) |
| Channel Depth (Each Side) | 0.50" (12.7 mm) |
| Corner Angle | 135° Inside Corner |
| Panel Leg Face Width | 1 1/4" (31.75 mm) per side |
| Mounting Flange Width | 1/2" (12.7 mm) |
| Total Width (Each Panel Side) | 2" (50.8 mm) |
| Trim Length | 48" (Standard) |
| Thickness | 20 Gauge (0.036") |
| Orientation | Angled Internal Corner Transition |
| Installation Method | Adhesive or Stainless Fasteners (not included) |
Installation Notes
-

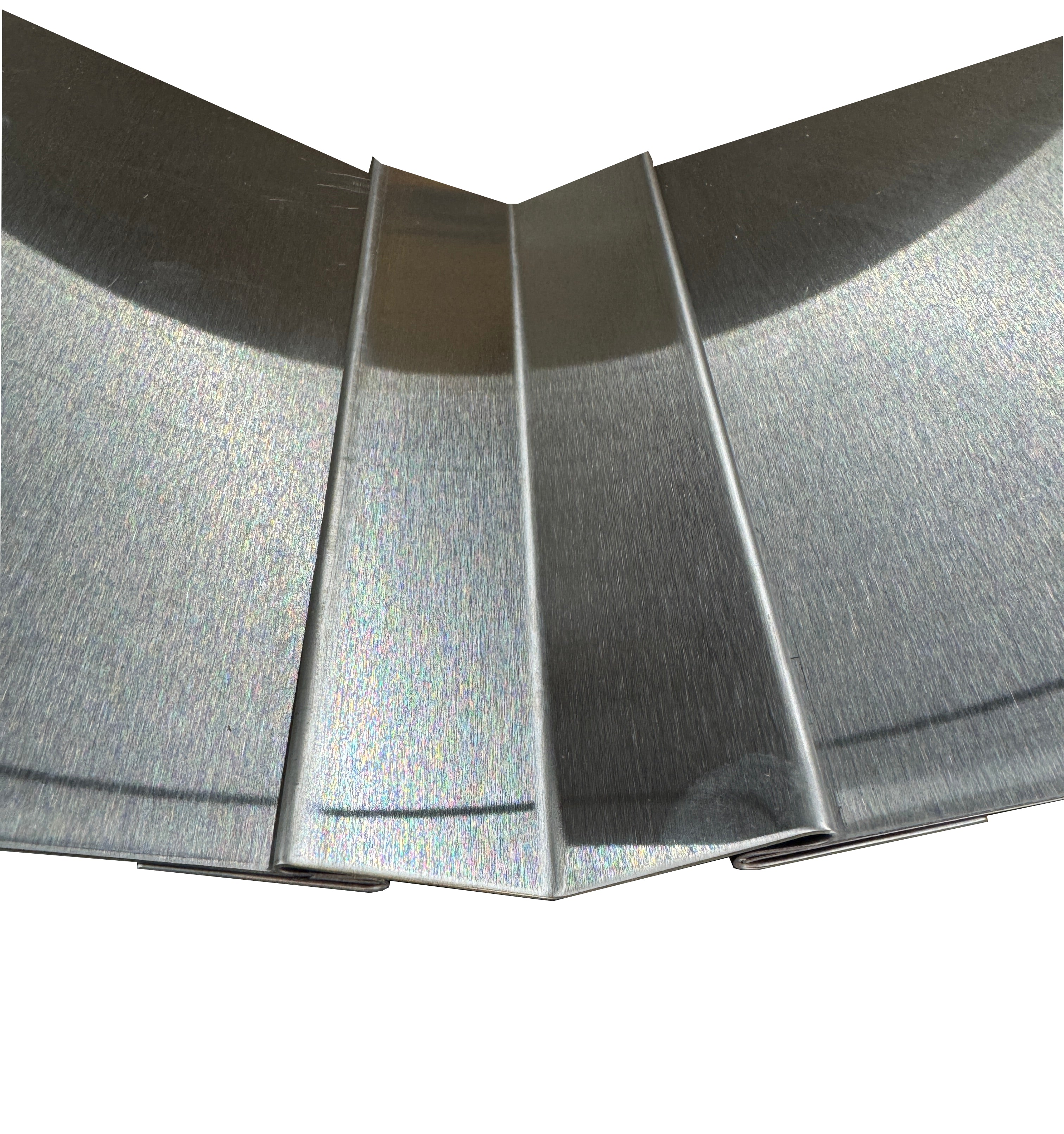

Panels insert into both 0.040" channels on either side of the 135° fold.
-
Ensure brushed grain direction aligns with installed panels.
-
Fasten via adhesive, rivets, or screws applied through the rear flanges.
The Epic QT 135° Inside Corner Trim is a precision-formed solution for joining two sheet metal panels at an internal 135° angled junction, commonly found in commercial backsplash returns, angled alcoves, or custom cladding transitions. Crafted from 20-gauge 304 stainless steel with a clean #4 brushed finish, this profile provides a robust and seamless visual line while securing panel edges cleanly and durably.
This trim features dual 0.040" channels designed for 20ga sheet panels (0.036"), reinforced by a central formed inside corner. Extended flanges on each side allow for secure adhesive or fastener-based installation.
Technical Specifications
| Attribute | Details |
|---|---|
| Product Name | Stainless Steel 135° Inside Corner Panel Trim – 20ga |
| Manufacturer | Epic QT (www.epicqt.com) |
| Model ID | PT135IC20-304SS48 |
| Material | 304 Stainless Steel |
| Finish | #4 Brushed (Directional Satin) |
| Panel Compatibility | 20 Gauge (0.036" / 0.91 mm) |
| Slot Opening Width (Each Side) | 0.040" (1.02 mm) |
| Channel Depth (Each Side) | 0.50" (12.7 mm) |
| Corner Angle | 135° Inside Corner |
| Panel Leg Face Width | 1 1/4" (31.75 mm) per side |
| Mounting Flange Width | 1/2" (12.7 mm) |
| Total Width (Each Panel Side) | 2" (50.8 mm) |
| Trim Length | 48" (Standard) |
| Thickness | 20 Gauge (0.036") |
| Orientation | Angled Internal Corner Transition |
| Installation Method | Adhesive or Stainless Fasteners (not included) |
Installation Notes
-
Panels insert into both 0.040" channels on either side of the 135° fold.
-
Ensure brushed grain direction aligns with installed panels.
-
Fasten via adhesive, rivets, or screws applied through the rear flanges.
