About

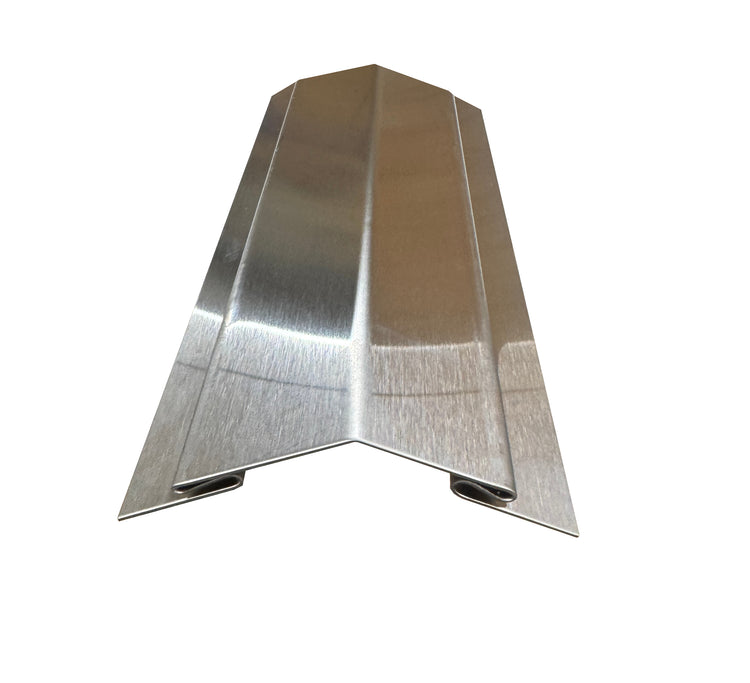

The Epic QT 135° Outside Corner Panel Trim is a specialty-angled transition profile designed to connect two sheet metal panels at an obtuse corner, such as 135° returns, angled walls, or backsplashes. Constructed from 20-gauge 304 stainless steel and finished with a #4 brushed surface, this trim provides both structural corner stability and seamless visual continuity.
Each trim features dual 0.040" precision-formed slots that perfectly accommodate 20ga panels (0.036"), along with a rigid center ridge that defines the 135° angle. The integrated flanges allow for easy adhesion or mechanical fastening.
Technical Specifications
| Attribute | Details |
|---|---|
| Product Name | Stainless Steel 135° Outside Corner Panel Trim – 20ga |
| Manufacturer | Epic QT (www.epicqt.com) |
| Model ID | PT135OC20-304SS48 |
| Material | 304 Stainless Steel |
| Finish | #4 Brushed (Directional Satin) |
| Panel Compatibility | 20 Gauge (0.036" / 0.91mm) |
| Slot Opening Width (Each Side) | 0.040" (1.02 mm) |
| Channel Depth (Each Side) | 0.50" (12.7 mm) |
| Corner Angle | 135° Outside |
| Leg Width (Face) | 1 1/4" (31.75 mm) each panel face |
| Flange Width (each return) | 1/2" (12.7 mm) |
| Overall Width (each side) | 2" |
| Trim Length | 48" Standard |
| Thickness | 20 Gauge (0.036") |
| Orientation | Angled Outside Corner – Panel Join |
| Use Case | Angled stainless panel systems, backsplashes, returns |
| Installation Method | Adhesive or Stainless Screws/Rivets |
Installation Guidance
-

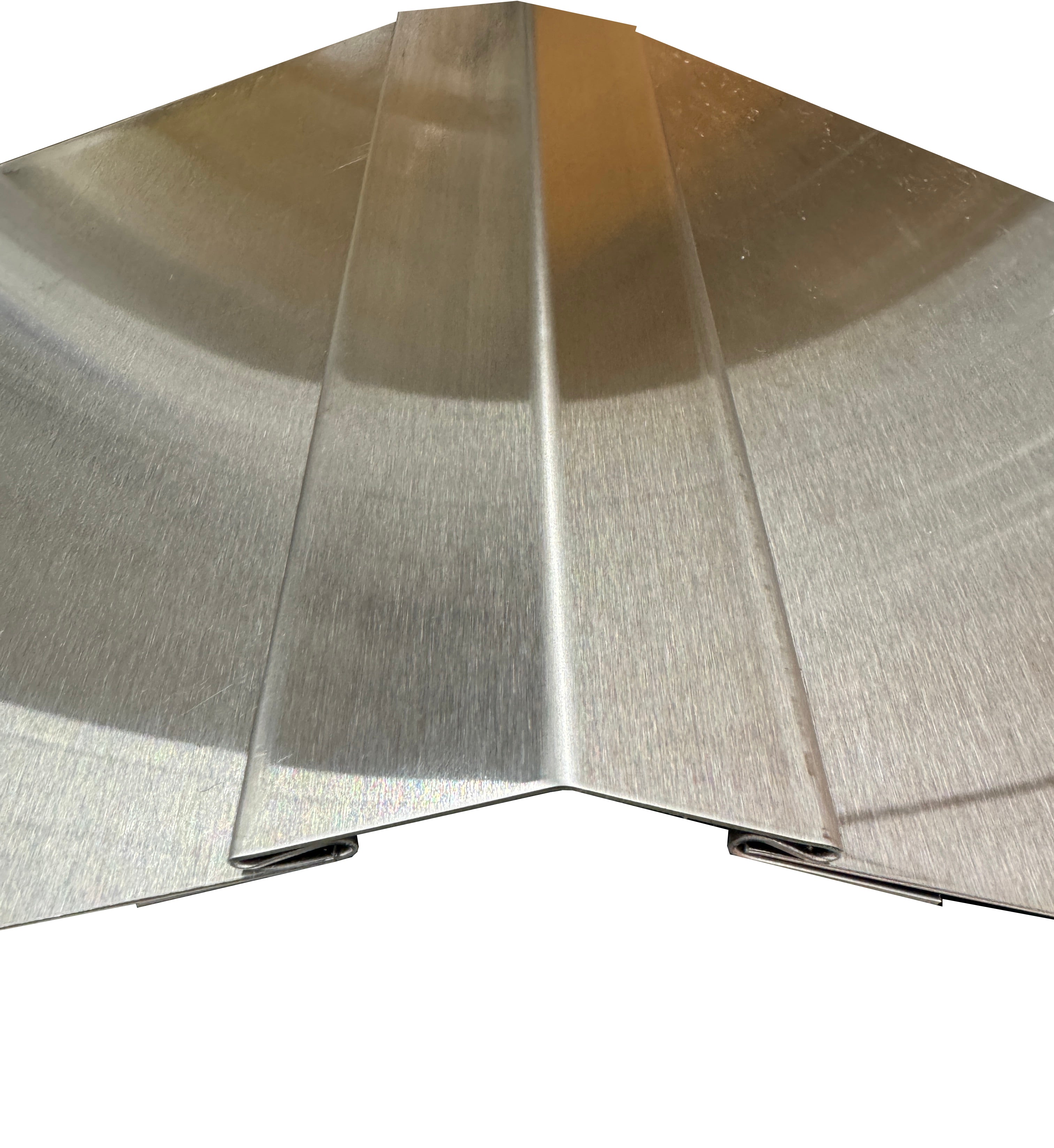

Position between adjoining angled wall panels.
-
Ensure panel edges fully seat into the 0.040" dual slots.
-
Use construction adhesive or fasteners on return flanges for secure mounting.
The Epic QT 135° Outside Corner Panel Trim is a specialty-angled transition profile designed to connect two sheet metal panels at an obtuse corner, such as 135° returns, angled walls, or backsplashes. Constructed from 20-gauge 304 stainless steel and finished with a #4 brushed surface, this trim provides both structural corner stability and seamless visual continuity.
Each trim features dual 0.040" precision-formed slots that perfectly accommodate 20ga panels (0.036"), along with a rigid center ridge that defines the 135° angle. The integrated flanges allow for easy adhesion or mechanical fastening.
Technical Specifications
| Attribute | Details |
|---|---|
| Product Name | Stainless Steel 135° Outside Corner Panel Trim – 20ga |
| Manufacturer | Epic QT (www.epicqt.com) |
| Model ID | PT135OC20-304SS48 |
| Material | 304 Stainless Steel |
| Finish | #4 Brushed (Directional Satin) |
| Panel Compatibility | 20 Gauge (0.036" / 0.91mm) |
| Slot Opening Width (Each Side) | 0.040" (1.02 mm) |
| Channel Depth (Each Side) | 0.50" (12.7 mm) |
| Corner Angle | 135° Outside |
| Leg Width (Face) | 1 1/4" (31.75 mm) each panel face |
| Flange Width (each return) | 1/2" (12.7 mm) |
| Overall Width (each side) | 2" |
| Trim Length | 48" Standard |
| Thickness | 20 Gauge (0.036") |
| Orientation | Angled Outside Corner – Panel Join |
| Use Case | Angled stainless panel systems, backsplashes, returns |
| Installation Method | Adhesive or Stainless Screws/Rivets |
Installation Guidance
-
Position between adjoining angled wall panels.
-
Ensure panel edges fully seat into the 0.040" dual slots.
-
Use construction adhesive or fasteners on return flanges for secure mounting.
Stainless Steel 135° Outside Corner Panel Trim – 20ga | #4 Brushed Finish
- Regular price
- $107.73
- Sale price
- $107.73
