About
The Epic QT 20ga Inside Corner Panel Trim is designed to deliver a precise and finished internal 90° corner junction between adjoining stainless steel wall panels. Engineered from 20 gauge 304 stainless steel and finished with a directional #4 brushed surface, this inside corner trim ensures clean transitions, edge protection, and moisture resistance in commercial and architectural panel applications.

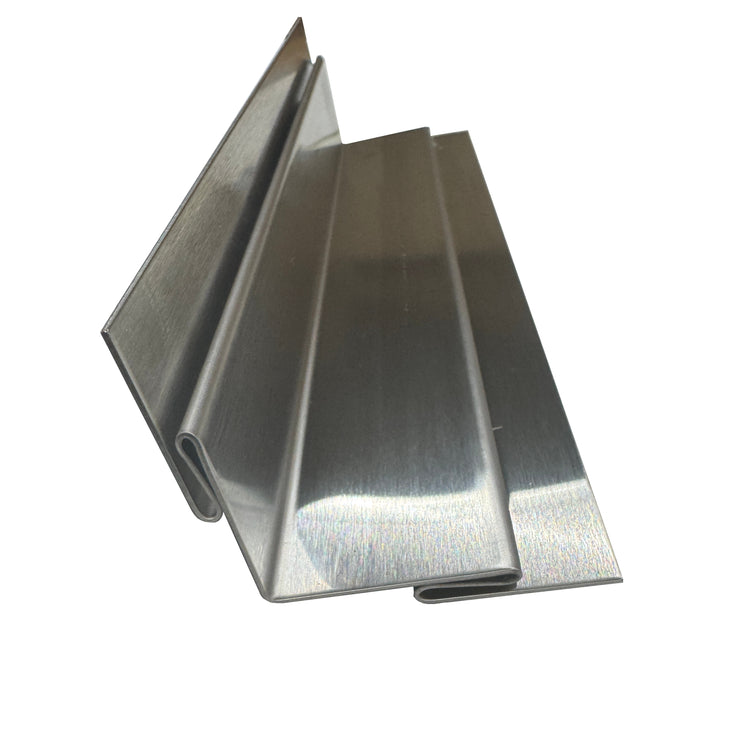

Featuring dual 0.040" panel channels and a formed corner ridge, this profile locks in both panels at a crisp 90° while maintaining grain consistency and a refined appearance. Ideal for cleanrooms, food service environments, kitchen cladding, and stainless architectural walls.
Technical Specifications
| Attribute | Details |
|---|---|
| Product Name | Stainless Steel 90 Degree Inside Corner Panel Trim – 20ga |
| Manufacturer | Epic QT (www.epicqt.com) |
| Model ID | PT90IC20-304SS48 |
| Material | 304 Stainless Steel |
| Finish | #4 Brushed (Directional Satin) |
| Panel Compatibility | 20 Gauge (0.036" / 0.91mm) |
| Slot Opening Width (Each Side) | 0.040" (1.02 mm) |
| Insert Depth per Side | 0.50" (12.7 mm) |
| Corner Angle | 90° Inside Corner |
| Panel Face Width (each leg) | 1 1/4" (31.75 mm) |
| Flange Width (each return) | 1/2" (12.7 mm) |
| Overall Width (each side) | 2" per panel leg |
| Trim Length | 48" Standard |
| Thickness | 20 Gauge (0.036") |
| Orientation | Interior Wall or Backsplash Inside Corner |
| Installation Method | Adhesive or Mechanical Fasteners (not included) |
Installation Guidance
-

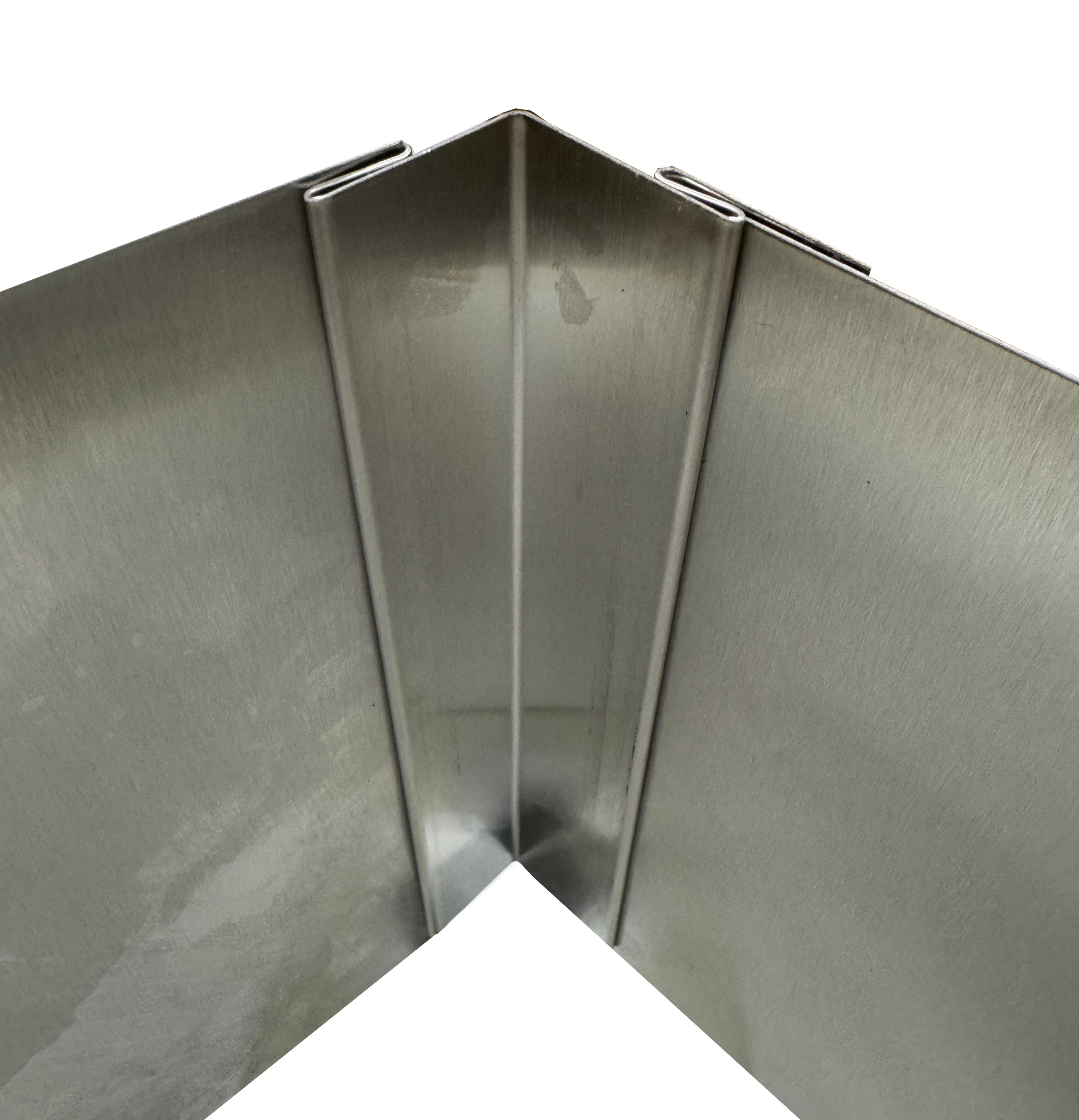

Place over intersecting inside corner; insert panel legs into each 0.040" slot.
-
Align brushed finish with adjacent panel grain.
-
Fasten using stainless steel screws, rivets, or adhesive behind mounting flanges.
The Epic QT 20ga Inside Corner Panel Trim is designed to deliver a precise and finished internal 90° corner junction between adjoining stainless steel wall panels. Engineered from 20 gauge 304 stainless steel and finished with a directional #4 brushed surface, this inside corner trim ensures clean transitions, edge protection, and moisture resistance in commercial and architectural panel applications.
Featuring dual 0.040" panel channels and a formed corner ridge, this profile locks in both panels at a crisp 90° while maintaining grain consistency and a refined appearance. Ideal for cleanrooms, food service environments, kitchen cladding, and stainless architectural walls.
Technical Specifications
| Attribute | Details |
|---|---|
| Product Name | Stainless Steel 90 Degree Inside Corner Panel Trim – 20ga |
| Manufacturer | Epic QT (www.epicqt.com) |
| Model ID | PT90IC20-304SS48 |
| Material | 304 Stainless Steel |
| Finish | #4 Brushed (Directional Satin) |
| Panel Compatibility | 20 Gauge (0.036" / 0.91mm) |
| Slot Opening Width (Each Side) | 0.040" (1.02 mm) |
| Insert Depth per Side | 0.50" (12.7 mm) |
| Corner Angle | 90° Inside Corner |
| Panel Face Width (each leg) | 1 1/4" (31.75 mm) |
| Flange Width (each return) | 1/2" (12.7 mm) |
| Overall Width (each side) | 2" per panel leg |
| Trim Length | 48" Standard |
| Thickness | 20 Gauge (0.036") |
| Orientation | Interior Wall or Backsplash Inside Corner |
| Installation Method | Adhesive or Mechanical Fasteners (not included) |
Installation Guidance
-
Place over intersecting inside corner; insert panel legs into each 0.040" slot.
-
Align brushed finish with adjacent panel grain.
-
Fasten using stainless steel screws, rivets, or adhesive behind mounting flanges.
