About

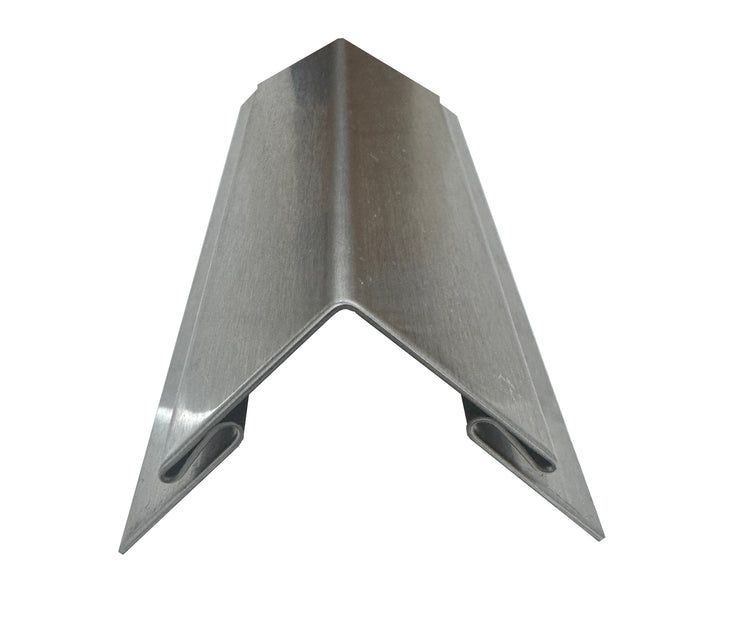

The 304 Stainless Steel Outside Corner Trim is an engineered solution for providing a seamless, reinforced, and visually clean 90° outside corner transition between adjoining sheet metal panels. It is fabricated from durable 20ga 304 stainless steel with a #4 directional brushed finish, offering both high corrosion resistance and architectural-grade aesthetics.
This outside corner trim is precision-fitted for 20ga (0.036") panels, with dual 0.040" edge slots that allow two panels to interlock securely on adjacent planes. A continuous formed apex ensures consistent alignment and corner integrity, while the integrated mounting flanges and reveal curls give it both structure and finish.
Technical Specifications
| Attribute | Details |
|---|---|
| Product Name | Stainless Steel 90 Degree Outside Corner Trim – 20ga |
| Manufacturer | Epic QT (www.epicqt.com) |
| Model ID | PT90OC20-304SS48 |
| Material | 304 Stainless Steel |
| Finish | #4 Brushed (Directional Satin) |
| Panel Compatibility | 20 Gauge (0.036" / 0.91mm) |
| Slot Opening Width (Each Side) | 0.040" (1.02 mm) |
| Insert Depth per Side | 0.50" (12.7 mm) |
| Corner Angle | 90° Outside |
| Leg Width (Face) | 1 1/4" (31.75 mm) per panel face |
| Flange Width (each return) | 1/2" (12.7 mm) |
| Overall Face Width | 2" per side (including flange) |
| Trim Length | 48" Standard |
| Thickness | 20 Gauge (0.036") |
| Orientation | External Corner Join – Right-Angle Transition |
| Use Case | Stainless steel panel systems, walls, cabinetry |
| Installation | Adhesive or Mechanical Fasteners (not included) |
Installation Notes
-

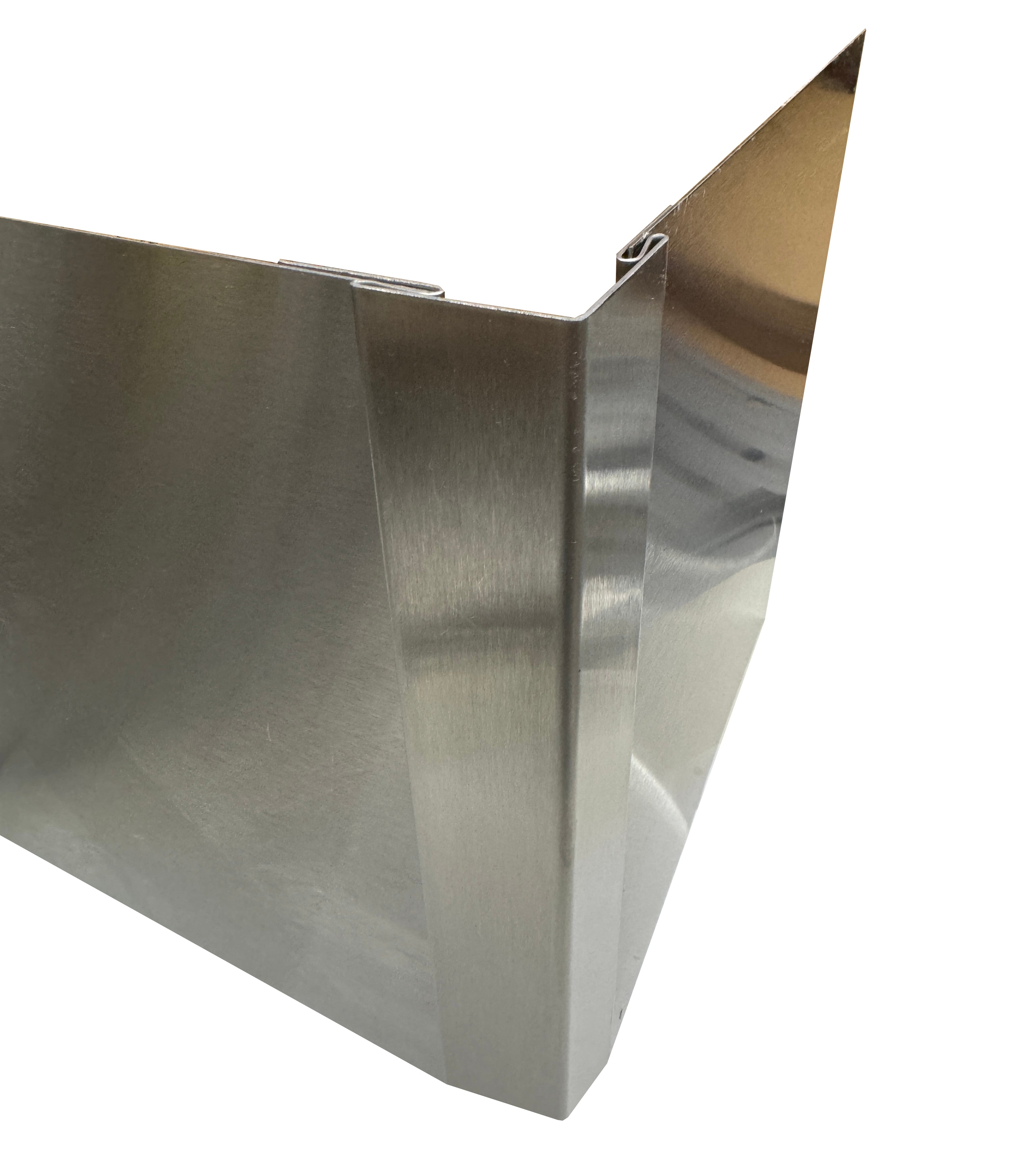

Align over outside panel junction, inserting panel edges into both 0.040" slots.
-
Apply construction adhesive or drill through mounting flanges to fasten.
-
Ensure brushed grain direction matches adjoining panels for uniformity.
The 304 Stainless Steel Outside Corner Trim is an engineered solution for providing a seamless, reinforced, and visually clean 90° outside corner transition between adjoining sheet metal panels. It is fabricated from durable 20ga 304 stainless steel with a #4 directional brushed finish, offering both high corrosion resistance and architectural-grade aesthetics.
This outside corner trim is precision-fitted for 20ga (0.036") panels, with dual 0.040" edge slots that allow two panels to interlock securely on adjacent planes. A continuous formed apex ensures consistent alignment and corner integrity, while the integrated mounting flanges and reveal curls give it both structure and finish.
Technical Specifications
| Attribute | Details |
|---|---|
| Product Name | Stainless Steel 90 Degree Outside Corner Trim – 20ga |
| Manufacturer | Epic QT (www.epicqt.com) |
| Model ID | PT90OC20-304SS48 |
| Material | 304 Stainless Steel |
| Finish | #4 Brushed (Directional Satin) |
| Panel Compatibility | 20 Gauge (0.036" / 0.91mm) |
| Slot Opening Width (Each Side) | 0.040" (1.02 mm) |
| Insert Depth per Side | 0.50" (12.7 mm) |
| Corner Angle | 90° Outside |
| Leg Width (Face) | 1 1/4" (31.75 mm) per panel face |
| Flange Width (each return) | 1/2" (12.7 mm) |
| Overall Face Width | 2" per side (including flange) |
| Trim Length | 48" Standard |
| Thickness | 20 Gauge (0.036") |
| Orientation | External Corner Join – Right-Angle Transition |
| Use Case | Stainless steel panel systems, walls, cabinetry |
| Installation | Adhesive or Mechanical Fasteners (not included) |
Installation Notes
-
Align over outside panel junction, inserting panel edges into both 0.040" slots.
-
Apply construction adhesive or drill through mounting flanges to fasten.
-
Ensure brushed grain direction matches adjoining panels for uniformity.
Stainless Steel 90° Outside Corner Panel Trim – 20ga | #4 Brushed Finish
- Regular price
- $107.73
- Sale price
- $107.73
- Regular price
-
Couldn't load pickup availability
