About

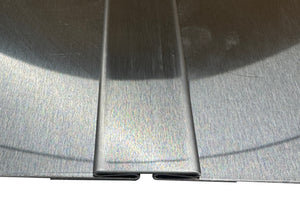

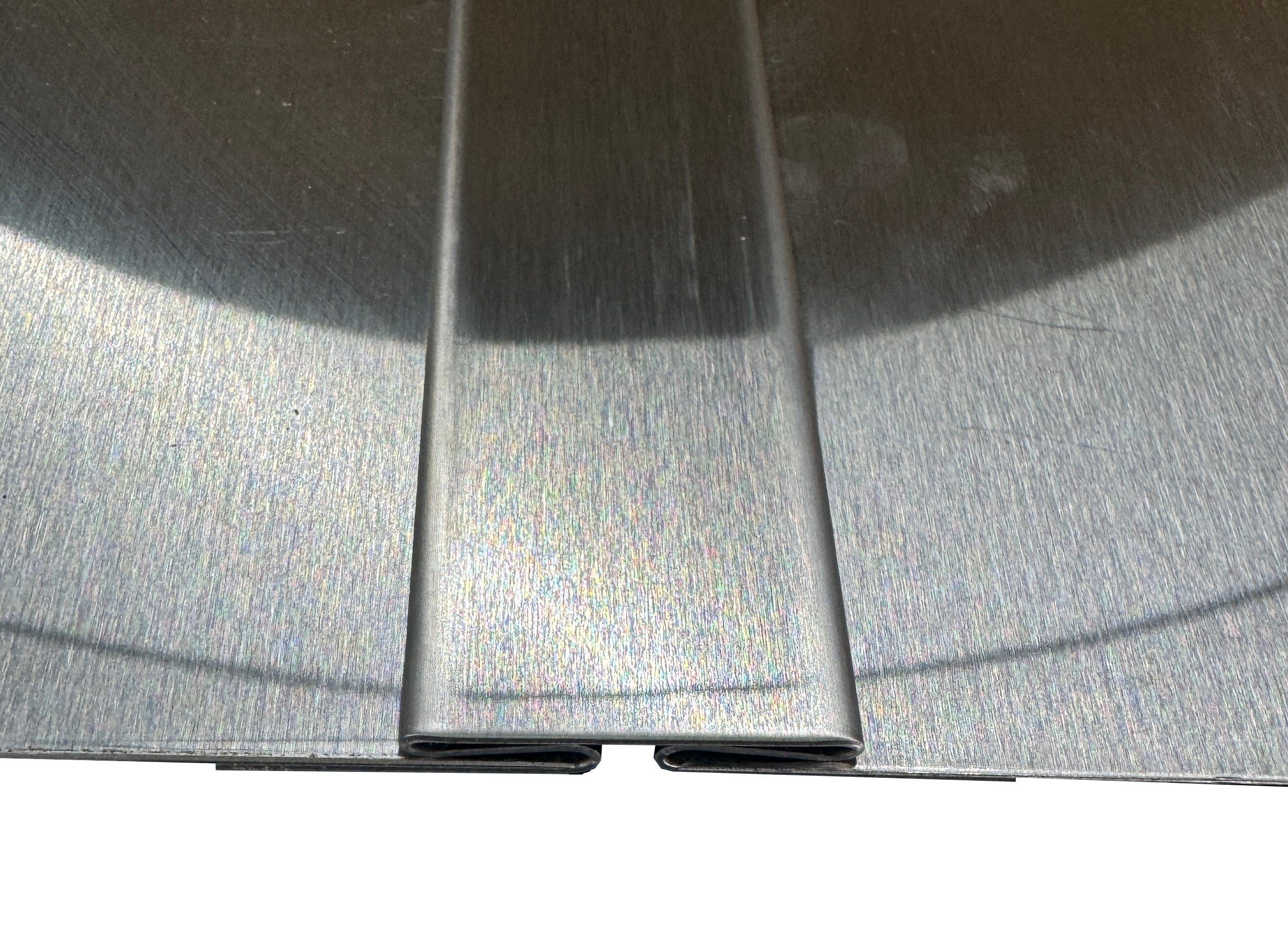

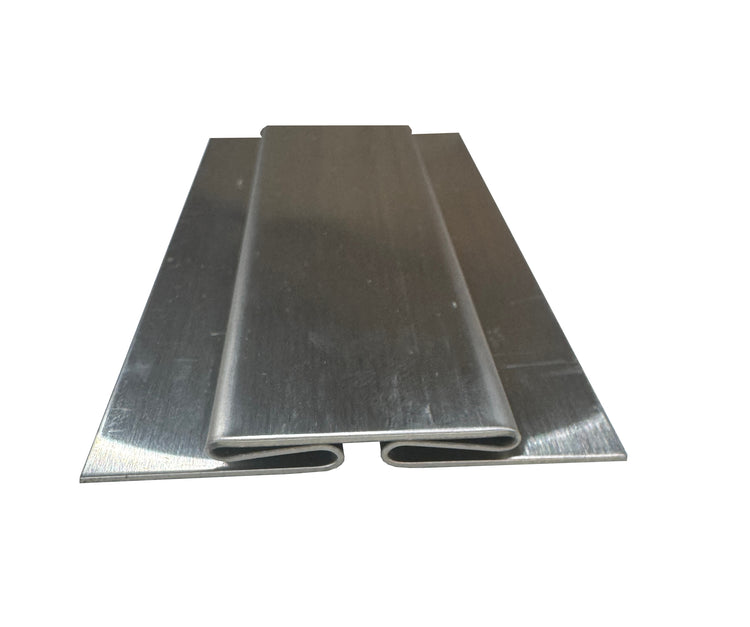

The 304 Stainless Steel Divider Trim is a precision-engineered profile used to connect two adjacent 20-gauge sheet metal panels in a clean and secure manner. Manufactured from high-grade 304 stainless steel with a #4 brushed finish, this trim is ideal for both functional separation and aesthetic continuity across large surface areas.
This divider trim features:
-
Dual channel slots sized at 0.040” for snug insertion of two 20ga (.036”) panels
-
A central reveal roll for aesthetic symmetry and reinforcement
-
Symmetrical mounting flanges for balanced installation on either side
Engineered for architectural metalwork, cleanroom walls, food service environments, and stainless steel cladding systems, this profile offers reliable strength, a modern visual, and easy integration with your existing panel layout.
Technical Specifications
| Attribute | Details |
|---|---|
| Product Name | Stainless Steel Divider Trim – 20ga |
| Manufacturer | Epic QT (www.epicqt.com) |
| Model ID | PT180D20-304SS48 |
| Material | 304 Stainless Steel |
| Finish | #4 Brushed (Directional Satin) |
| Panel Compatibility | 20 Gauge (0.036" / 0.91mm) Panels (Both Sides) |
| Slot Opening (Each Side) | 0.040" (1.02 mm) |
| Channel Depth (Each Side) | 0.50" (12.7 mm) |
| Central Reveal Width | 1 1/4" (1.25" / 31.75 mm) |
| Mounting Flange Width (Each) | 1/2" (12.7 mm) |
| Total Face Width | 2 3/8" (60.3 mm) |
| Overall Trim Thickness | ~1/4" (6.35 mm) |
| Trim Length | 48" Standard (Custom on request) |
| Orientation | Center Divider / Panel Joiner |
| Installation Options | Adhesive, Screws, Rivets |
| Use Environment | Wet/Dry, Indoor/Outdoor |
| Industry Use Cases | Kitchens, Cleanrooms, Labs, Architectural Walls |
Installation Recommendations
-
Position between two 20ga panels for seamless division.
-
Secure using industrial adhesive, rivets, or stainless screws as appropriate.
-
Install in conjunction with other Epic QT panel trims for fully integrated cladding systems.
