Description:

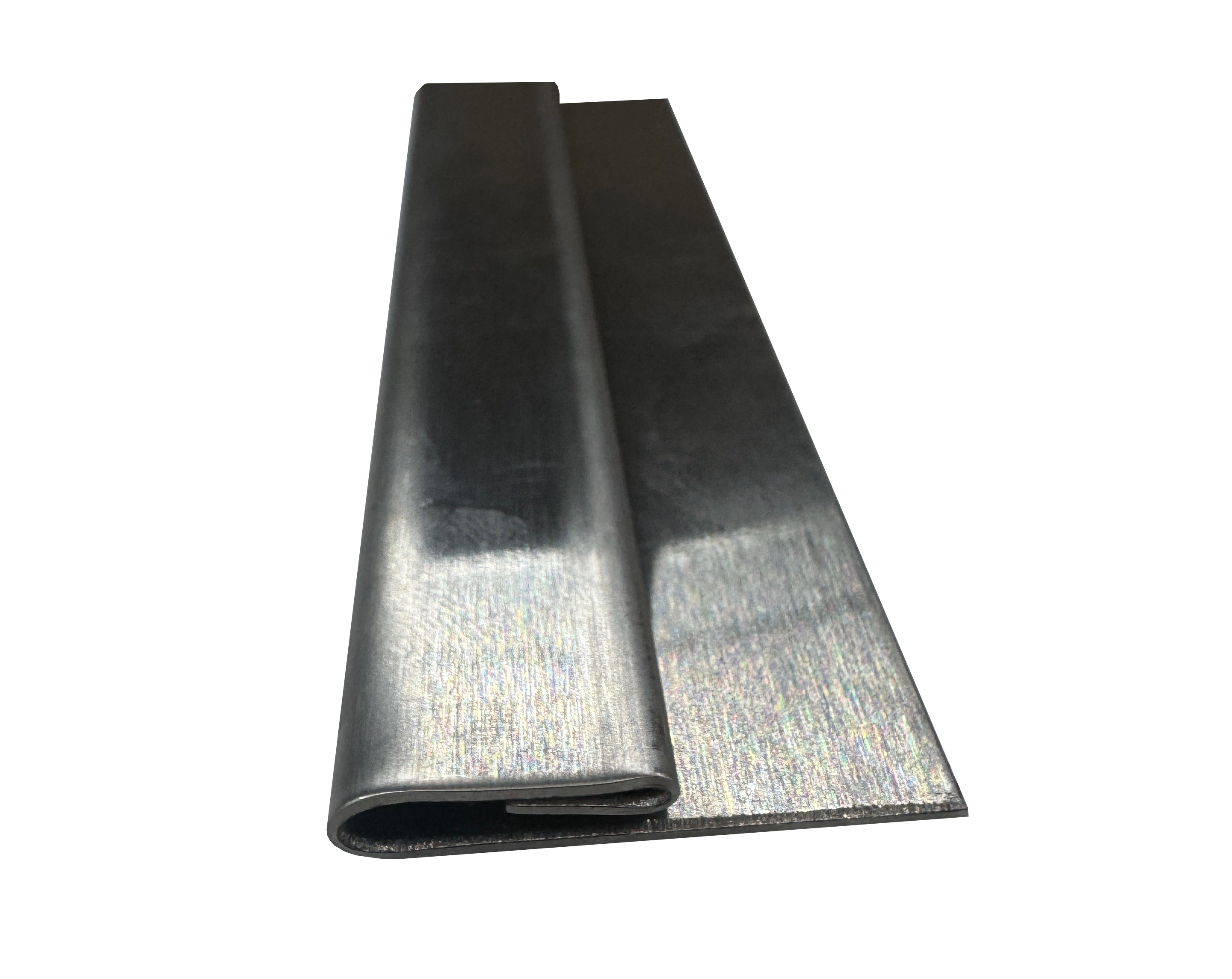

This 20ga Stainless Steel Edge Trim is a specialized finishing profile engineered to cap and protect the edge of sheet metal panels. Fabricated from Type 304 stainless steel with a #4 directional brushed finish, this trim delivers both functional durability and architectural appeal.

The profile is specifically designed to accept 20 gauge panels (0.036" nominal) and features:

A precisely formed 0.040" slot opening
A rolled reveal flange (5/8") for aesthetic coverage
A deep channel (1/2") to ensure secure panel capture
A wide 1 1/8" mounting flange to facilitate mechanical or adhesive attachment

This product is one of six trim types in the Epic QT stainless steel panel trim collection and is ideal for use in commercial kitchens, wall protection systems, enclosures, and stainless steel cladding projects.

Technical Specifications

Attribute	Details
Product Name	Stainless Steel Panel Edge Trim – 20ga
Manufacturer	Epic QT (www.epicqt.com)
Model ID	PT180ET20-304SS48
Material	304 Stainless Steel
Finish	#4 Brushed (Directional Satin)
Panel Compatibility	20 Gauge (0.036" / 0.91mm) Stainless Panels
Trim Slot Opening	0.040" (1.02 mm)
Channel Depth (Insert Depth)	0.50" (12.7 mm)
Mounting Flange Width	1 1/8" (1.125" / 28.58 mm)
Reveal Flange Width	5/8" (0.625" / 15.88 mm)
Back Flange Height	3/8" (0.375" / 9.53 mm)
Overall Thickness	1/4" (6.35 mm)
Trim Length	48" Standard (Custom lengths available)
Orientation	Edge-mount
Installation Options	Adhesive, Screws, Rivets (not included)
Use Environment	Indoor or Outdoor, Wet or Dry
Industry Use Cases	Kitchens, Architectural Panels, Enclosures

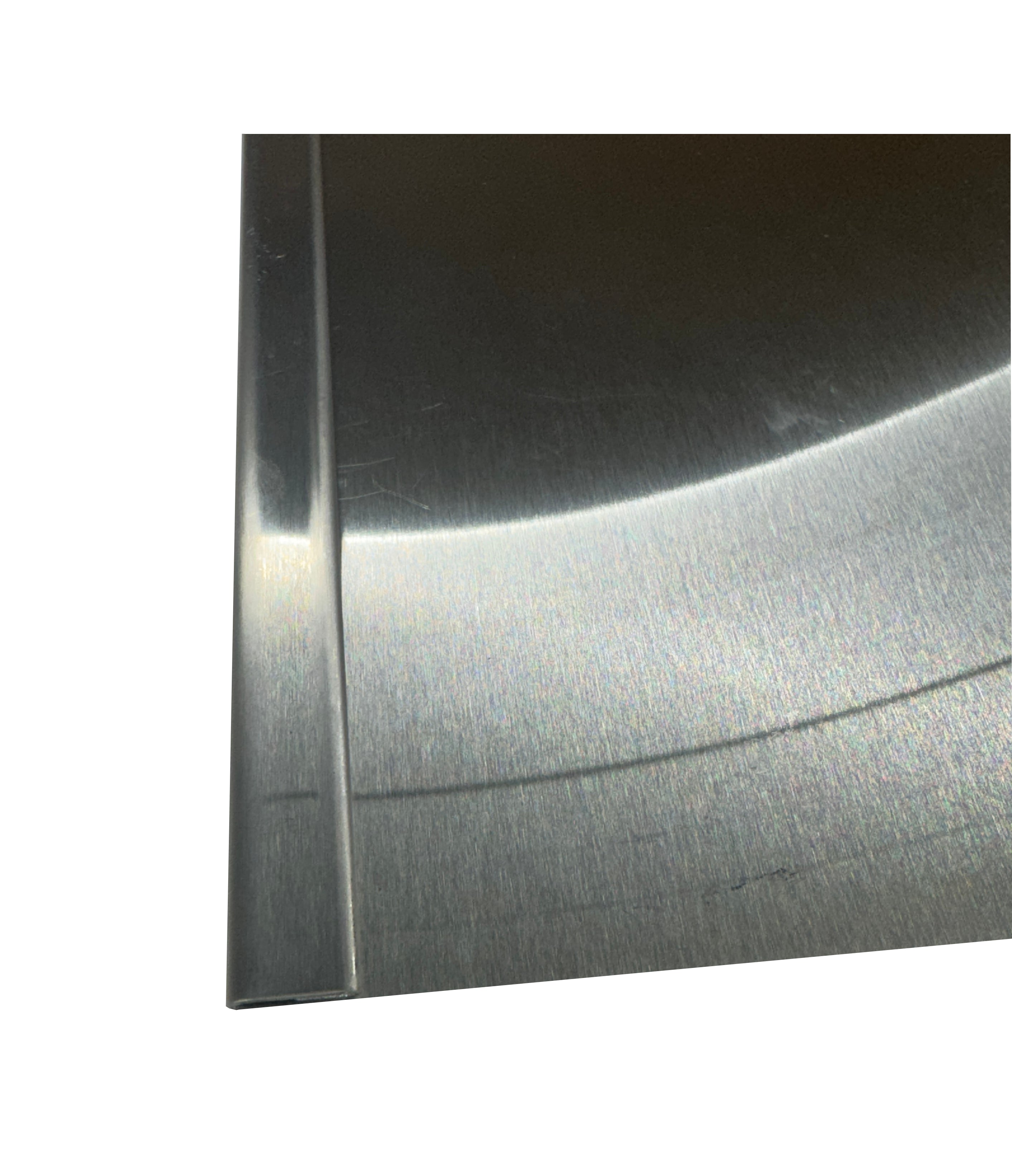

Installation Recommendations

Apply with industrial-grade adhesive for flush wall-mounted panels.
Use mechanical fasteners through the wide mounting flange for structural applications.
Pair with matching corner trims and divider trims from the Epic QT Trim Series for a seamless full-panel system.

Description:

The profile is specifically designed to accept 20 gauge panels (0.036" nominal) and features:

A precisely formed 0.040" slot opening
A rolled reveal flange (5/8") for aesthetic coverage
A deep channel (1/2") to ensure secure panel capture
A wide 1 1/8" mounting flange to facilitate mechanical or adhesive attachment

Technical Specifications

Attribute	Details
Product Name	Stainless Steel Panel Edge Trim – 20ga
Manufacturer	Epic QT (www.epicqt.com)
Model ID	PT180ET20-304SS48
Material	304 Stainless Steel
Finish	#4 Brushed (Directional Satin)
Panel Compatibility	20 Gauge (0.036" / 0.91mm) Stainless Panels
Trim Slot Opening	0.040" (1.02 mm)
Channel Depth (Insert Depth)	0.50" (12.7 mm)
Mounting Flange Width	1 1/8" (1.125" / 28.58 mm)
Reveal Flange Width	5/8" (0.625" / 15.88 mm)
Back Flange Height	3/8" (0.375" / 9.53 mm)
Overall Thickness	1/4" (6.35 mm)
Trim Length	48" Standard (Custom lengths available)
Orientation	Edge-mount
Installation Options	Adhesive, Screws, Rivets (not included)
Use Environment	Indoor or Outdoor, Wet or Dry
Industry Use Cases	Kitchens, Architectural Panels, Enclosures

Installation Recommendations

Apply with industrial-grade adhesive for flush wall-mounted panels.
Use mechanical fasteners through the wide mounting flange for structural applications.
Pair with matching corner trims and divider trims from the Epic QT Trim Series for a seamless full-panel system.
